OmniCure UVC LED Surface Disinfection Systems

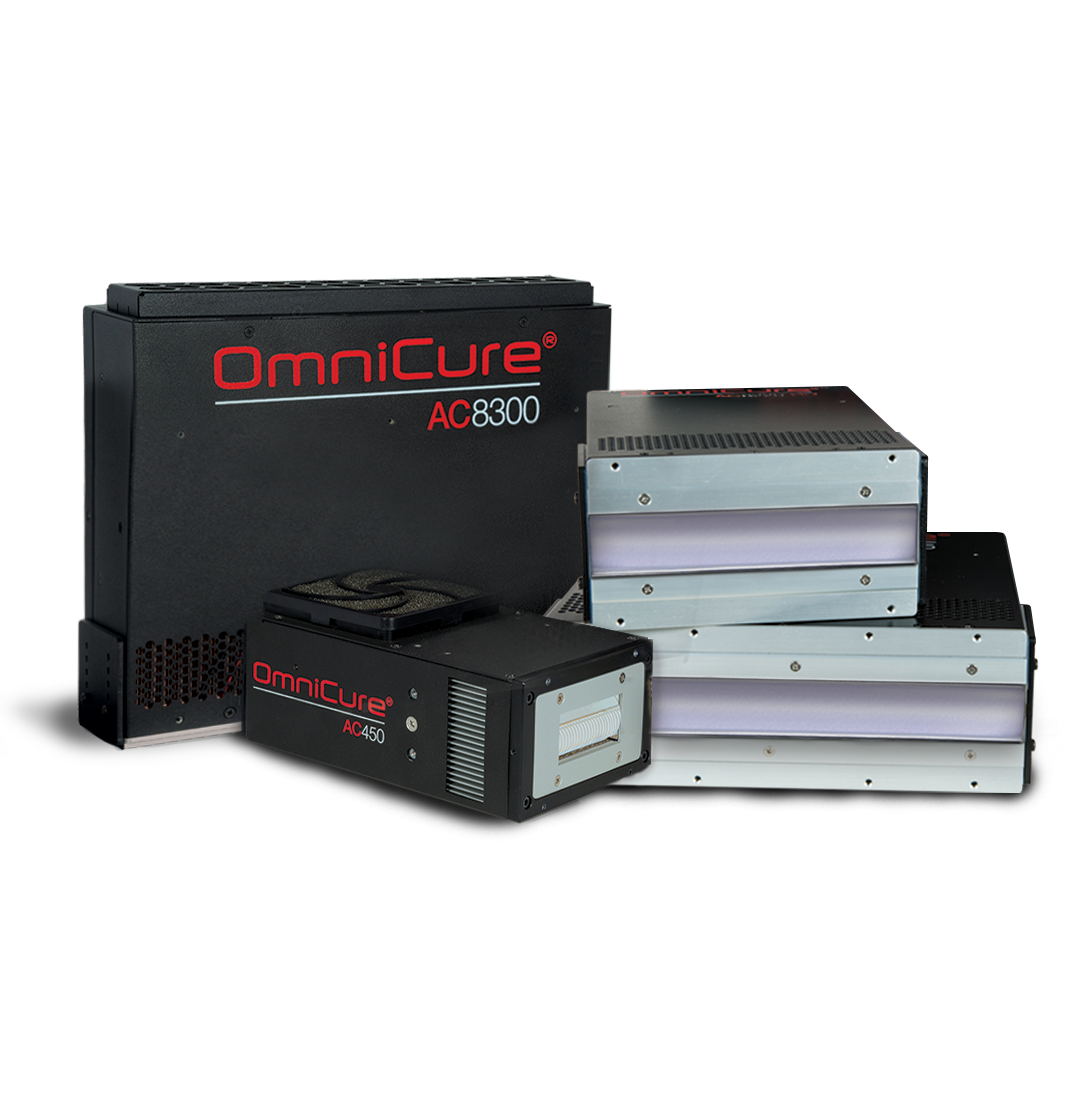

OmniCure AC Series UVC LED Surface Disinfection Systems

OmniCure® has provided industry leading UV solutions to its customers for decades.  By leveraging its proven AC Series platforms, UVC LED surface disinfection systems with the same quality, robustness, and features can be used in the elimination of harmful pathogens.  Featuring a modular design that can be easily integrated and linearly scaled, these UVC LED products offer a safer, mercury and ozone-free solution for disinfection applications.

OmniCure UVC LED solutions are designed using electrical, optical and thermal architectures that have been validated in the field, and proven to consistently and reliably perform. With premium features such as modular output control, exceptional uniformity and custom optics, these UVC systems offer the highest performance while enabling easy integration. With no Hg or ozone, OmniCure UVC LED systems offer high stability, long life, low power consumption, and flexibility for touchless disinfection solutions. These solutions are available in a range of air-cooled form factors and are ideal for applications where a non-mercury source is desired.  For more information on our full product portfolio of UVC Light Sources, UVC curing, or have a custom application to discuss, please contact us to speak to a product expert.

To learn more about the various UV sources for germicidal disinfection and the critical factors for determining a UVGI solution’s effectiveness, read what our experts have to say in a recent article published by LEDs Magazine.

OmniCure UVC LED Surface Disinfection Systems

LED Peak Wavelengths

272 nm

Active Optical Area

From 25 x 50mm to 25 x 300mm1

Peak Irradiance

>1000 mW/cm2

Longitudinal Uniformity*

Better than ± 10%

Operating Voltage

48 V DC

Dimensions (L x W x H)

110 x 68 x 190 mm | 159 x 80 x 218 mm
235 x 80 x 218 mm
| 311 x 80 x 218 mm

Weight

From 1.1 kg2

Cooling

Air

Automation

Integrated PLC controls for UV intensity and system alarms

*At 100% intensity setting.
In 25mm increments from 25 x 50mm up to 25 x 300mm. Varies depending on size of optical area.



OmniCure UVC LED Surface Disinfection Systems

LED Peak Wavelengths

272 nm

Active Optical Area

From 25 x 50mm to 25 x 300mm1

Peak Irradiance

>1000 mW/cm2

Longitudinal Uniformity*

Better than ± 10%

Operating Voltage

48 V DC

Dimensions (L x W x H)

110 x 68 x 190 mm | 159 x 80 x 218 mm
235 x 80 x 218 mm
| 311 x 80 x 218 mm

Weight

From 1.1 kg2

Cooling

Air

Automation

Integrated PLC controls for UV intensity and system alarms

*At 100% intensity setting.
In 25mm increments from 25 x 50mm up to 25 x 300mm. Varies depending on size of optical area.
